52mm 1500W SDS-MAX Brushless Rotary Hammer

Industry first AC Brushless Motor. Unique Maintenance-free Brushless motor provides significantly longer life. No carbon brush replacement required. None of the traditional problems from conventional brushed commutator motors​.

Product Info

Industry first AC Brushless Motor. Unique Maintenance-free Brushless motor provides significantly longer life. No carbon brush replacement required. None of the traditional problems from conventional brushed commutator motors​

• Stable Performance under voltage drop situations. Unlike conventional electric Rotary hammers, drilling performance isn't affected as much by voltage drop from long extension leads on site.
• Stable Performance when used with Generators. Brushless design operates consistently and without the traditional problems cause by generator use. Requires suitably sized Generator output.
• Fastest Drill speed in its class - Up to 20% faster*
• Highest Demolition Performance in its class - Up to 30% high performance*
• Ultra low vibration due to Hitachi's original, spring-type dynamic vibration absorber & vibration absorbing side-handle - Approx. 26% lower vibration value*
• Hitachi's original, pendulum dynamic vibration absorber reduces the vibration by moving a weight and a leaf spring in the opposite direction to the movement of the hammer.
• Aluminium Housing Body (AHB) provides a super strong aluminium die-cast body with internal double-insulation making the housing more rigid, significantly enhancing durability of the motor unit.
• Improved handling with constant speed control & 4-stage electronic switching to adjust the drilling speed and impact rate
• Continuous operation function (Hammer only Mode) – keeps the tool running even after the trigger switch is released, making chiselling easier.
• One-touch quick change SDS MAX chuck
• Large change lever & trigger switch - easy to operate wearing gloves
• 2-mode – Hammer only and Hammer Drilling
• Variable lock mechanism allows 12 different chisel angles (hammer only)
• *A comparison of the model DH40MEY(G1) and the previous model DH40MRY. The results may vary depending on operating conditions.

Product Specs

Capacity - Masonry

• 52mm (drill bit)
• 106mm (core bit)
• Bit Shank                             SDS MAX
• Power Input                       1,500W
• No Load Speed                 110 - 280/min
• Full Load Impact Rate                     1,000 - 2,400/min
• Impact Energy Per Stroke                             22.0 Joules

Vibration Total Values (triax vector sum)

• Hammer drilling into concrete    Vibration emission value : ah, HD = 9.8m/s2 Uncertainty K = 1.5 m/s2

• Equivalent chiselling value           Vibration emission value : ah, CHeq = 9.7m/s2 Uncertainty K = 1.5m/s2
• Overall Length                   585mm
• Weight                 11.0kg

Standard Accessories

• Side handle
• Depth gauge
• Carry case

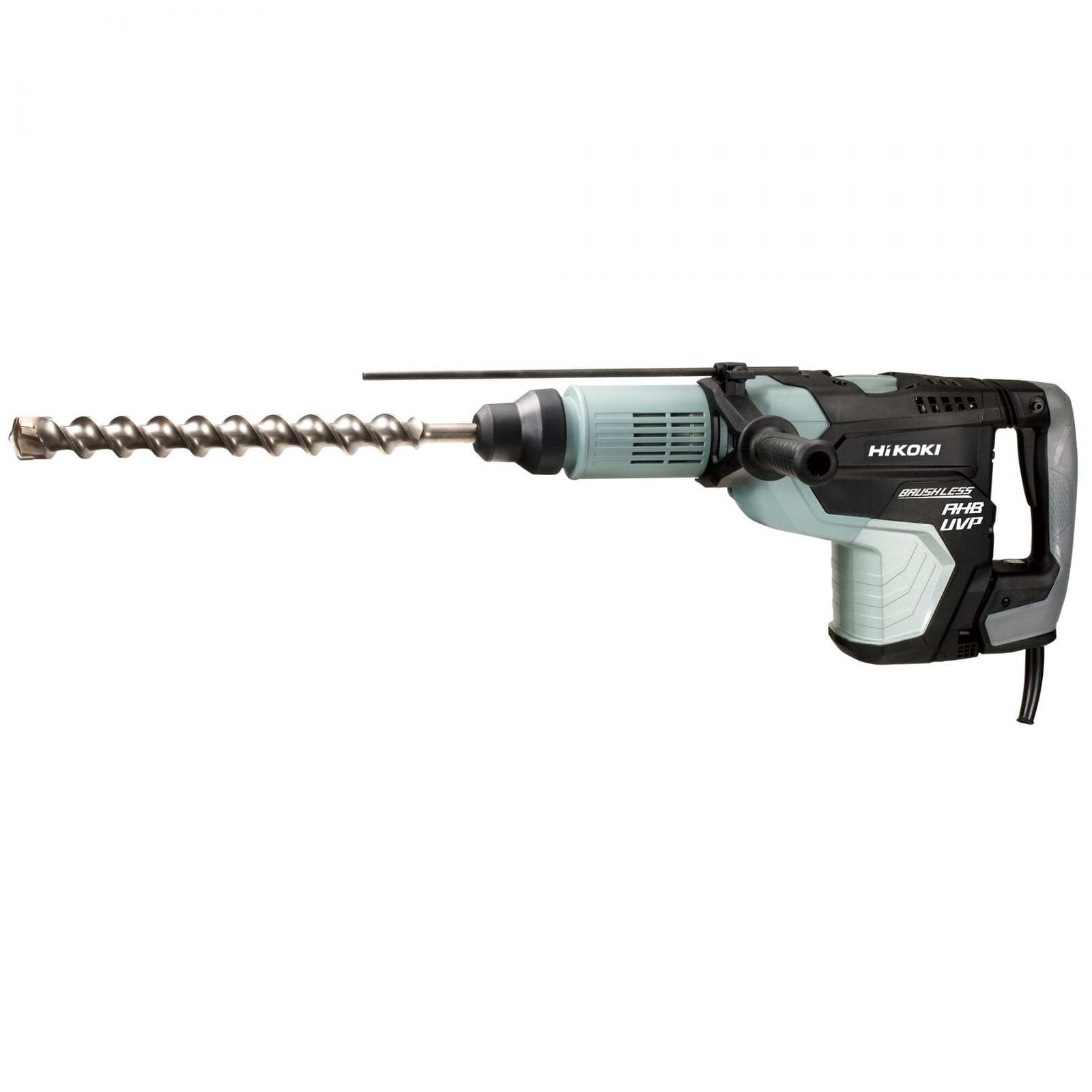

(Supplied without pictured drill bit)

(The tri-axial vibration values were measured according to EN60745-2-6)
