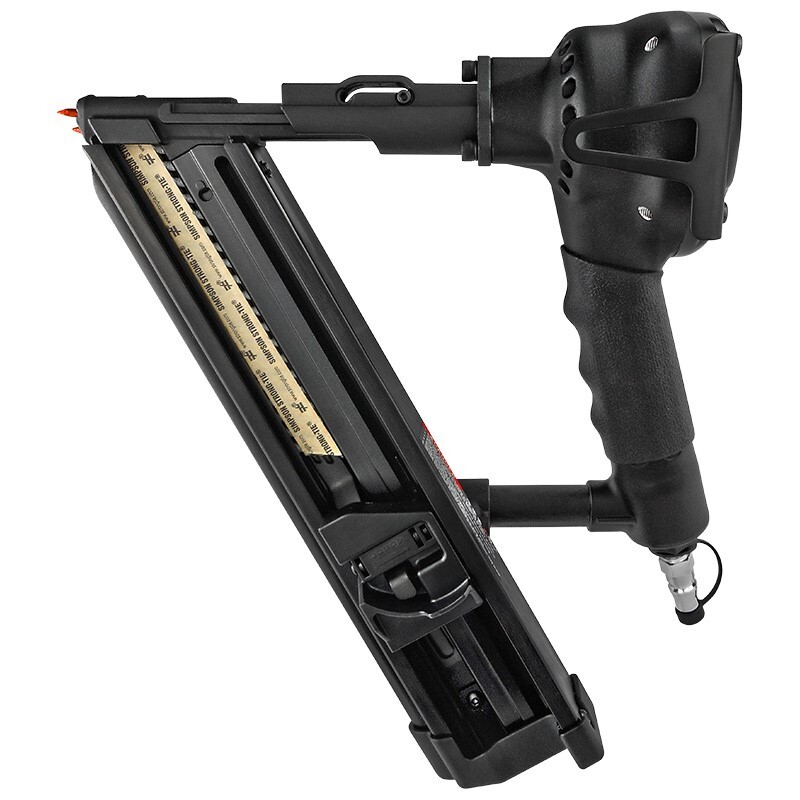

Simpson Strong Tie CCN64 Collated Connector Nailer 33 Degrees



The STCCN64 Collated Connector Nailer helps to ensure the correct installation of connectors through its unique design and is considerably faster than traditional hand nailing. The STCCN64 has been designed so that connector nails protrude from the tip of the tool. This allows the user to easily locate the tip of the nail into the connector hole so that the connector will not be damaged. The nails are hammered into the timber via multiple blows which prevents the nail from being overdriven.



Product Data

  • Dimensions: L305 x W119 x H273 mm
  • Action: Multi-Blow
  • Weight: 2.1 kg
  • Operating Pressure: 90–120 psi*
  • Magazine: Single strip (approx. 28 nails)
  • CCN64 Includes
  • CCN64 tool
  • Operation manual
  • Allen Keys
  • Safety glasses
  • Tool Oil
  • Rugged toolbox
  • Nail Suitability
  • Angle: 33°–35°
  • Collation: Paper tape
  • Head: Full round head
  • Diameter: 3.3  |  3.8  |  4.1 mm
  • Length: 38  |  64 mm (± 2 mm)
  • See page 162 for
  • Collated Strong-Drive® 33° SCN and SCNR CONNECTOR Nails
  • Helps to ensure the correct installation of connectors
  • Faster than traditional hand nailing
  • Nail tip protrudes to easily locate connector hole
  • Multi-blow action hammers in, and helps prevent the nail from being overdriven
  • Compact design to get into tight spaces
  • Lightweight at only 2.1 kg for increased user comfort
  • Single hand operation
  • Compatible with our Strong-Drive SCN or SCNR collated connector nails
  • Drives 38mm and 64mm 33° paper tape collated connector nails



Specification:

Code: STCCN64

Brand: Simpson String Tie

Dimension: 305mmx119mmx273mm

Weight: 2.1kg

Operating Pressure: 90-120 psi

Magazine: Single Strip 28 nails

Nail Diameter: 3.3mm

Nail Length:3.8mm

Nail Collation:4.1mm

(STCCN64)

SKU STCCN64
Brand Simpson Strong Tie
