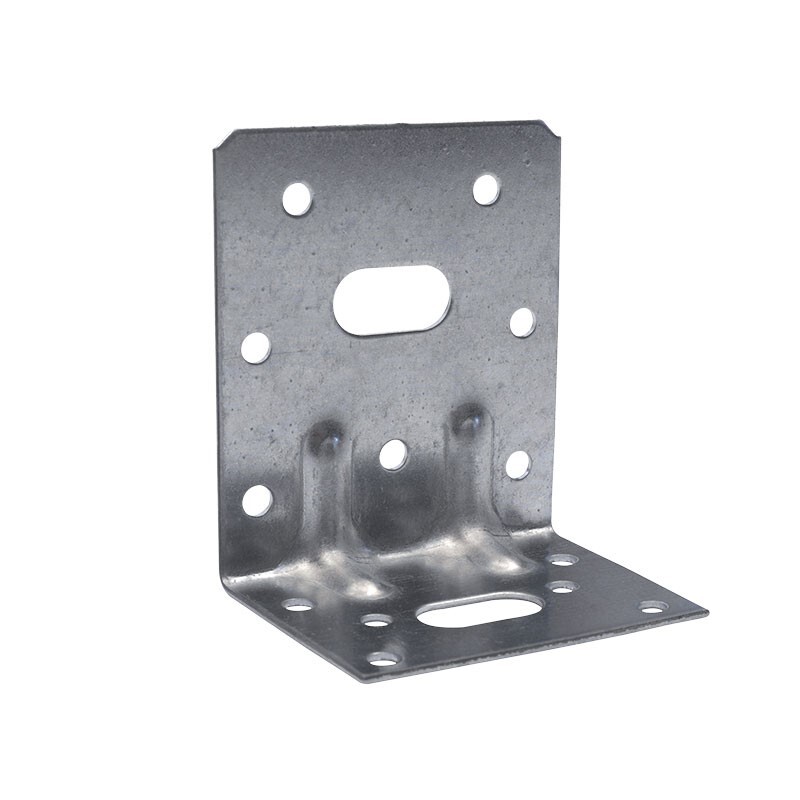

Simpson Strong Tie E5SS Reinforced Angle Bracket 65mm x 75mm x 48mm Stainless Steel 316



STE5SS Reinforced Angle Bracket is suitable for structural applications in framing and timber-frame houses for general connecting of timber at 90-degree angles. Typical applications include fixing trusses, studs, purlins, beams and posts. Suitable support materials include solid timber, composite timber, laminated timber and trusses.



  • Removes the guesswork for making perfectly square connections
  • Reinforces 90-degree connections
  • Two anchor holes for extra strength in required applications
  • Heavily swaged without any welding during the manufacturing process gives it extra strength
  • Easy to install for right-angled corner joints reinforcement



Specification:

Code: STE5SS

Brand: Simpson Strong Tie

Catagory: Hangers

Height: 75mm

Width: 65mm

Back: 48mm

Material: 305 Stainless Steel

Qty:







Design Capacity is the lesser of (1) the Characteristic Capacity multiplied by the Australian Capacity Factor, or the NZ Strength Reduction Factor (φ), and applicable the k modification factors following AS 1720.1 and NZS 3603 and (2) the Serviceability Capacity which is the load at 3.2 mm joint slip. Design Capacity is the minimum of test data and structural joint calculation.

For Australia, the Capacity Factor (φ) is 0.85 for nails and screws for structural joints in a Category 1 application. Reduce tabulated values where other Category applications govern. For NZ, the Strength Reduction Factor (φ) is 0.80 for nails in lateral loading and 0.7 for other types of fasteners.

Duration of Load Factor (k1) is as shown. Reduce Duration of Load Factor (k1) where applicable. Capacities may not be increased.

Timber species for joint design is seasoned Radiata Pine, which is Australia Joint Group JD4 per AS 1720.1 Table H2.4 and New Zealand Joint Group J5 per NZS 3603 Table 4.1.

Simpson Strong-Tie stainless-steel connectors require stainless-steel fasteners.

(STE5SS)

SKU STE5SS
Brand Simpson Strong Tie
