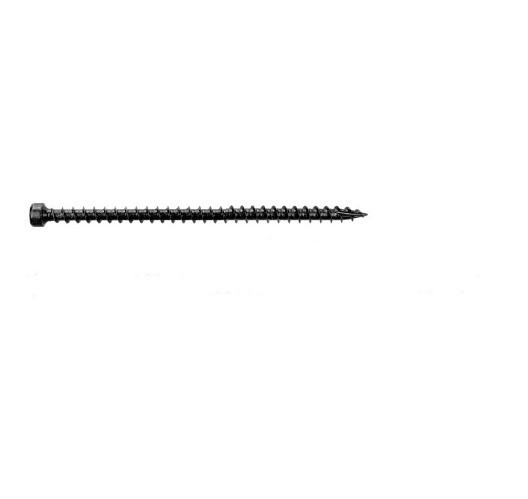

Simpson Strongtie Truss Screw SSWC 3.8mm x 114mm T30 W/Guide Black 50 Box



The Strong‰ÛÔDrive STSDWC15450 Truss Screw provides a truss and rafter-to-top plate connection as well as a method to fasten stud-to-top and bottom plate. The fully-threaded shank engages the entire length of the fastener providing a secure connection.

The STSDWC15450 uplift values listed were analysed and calculated based on the characteristic values determined following AS1649-2001 (Timber-Methods of Test for Mechanical Fasteners and Connectors-Basic Working Loads and Characteristic Strength). The STSDWC15450 has also been tested in accordance with ICC-ES AC233 (screw) and AC13 (wall assembly and roof-to-wall assembly) for uplift and lateral loads between wall plates and vertical wall framing and between the top plate and the roof rafters or trusses.



  • Cap Head countersinks fully into the double top plate to avoid interference with plasterboard or finish trades
  • Fully-threaded shank engages the entire length of the fastener, providing a secure connection between the roof and wall framing members
  • Type-17 Point for faster starts and easier driving
  • Wide tolerance on installation angle makes it easy to install the STSDWC15450 correctly ‰ÛÓ Installation guide included to help ensure proper installation angle
  • Can be installed from inside the structure, eliminating exterior work on the upper stories and enhancing job safety
  • Fastening can be performed before or after exterior sheathing is applied for added flexibility
  • Installation guide included in pack to help ensure proper installation angle



Applications

  • Truss/Rafter-to-Top Plate connection
  • Stud-to-Top and Bottom Plate connection



Specification:

Code: STSDWC15450

Brand: Simpson Strong Tie

Category: Fasteners

Fastener Length: 114mm

Thread Lengh: 108mm

Material: Carbon Steel

Finish: E‰ÛÔCoat

(STSDWC15450)

SKU STSDWC15450
Brand Simpson Strong Tie
