Masons Barricade Fire Rated Wrap 2.74m 100m2



PRODUCT DESCRIPTION

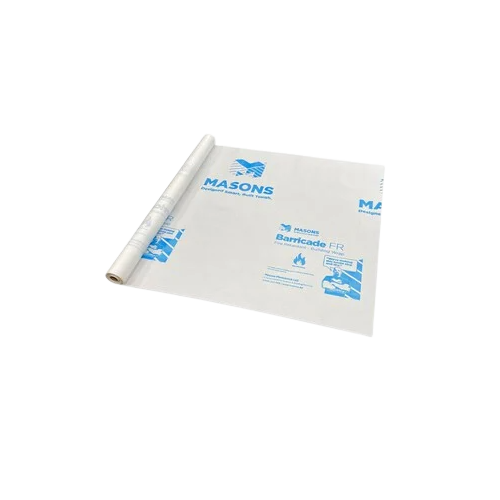

Barricade FR Wrap is a non-woven fire retardant, water resistant, breathable synthetic wall underlay for use under direct fixed and non-direct fixed wall cladding on timber framed and steel framed buildings. The product is manufactured from high quality synthetic spun bonded material with high UV qualities.

ADVANTAGES

  • Barricade FR Building Wrap is fire retardant
  • Barricade FR Building Wrap is water resistant
  • Barricade FR Building Wrap has a consistent breathable surface
  • Barricade FR Building Wrap is absorbent and can be used with absorbent and non-absorbent cladding.
  • Barricade FR Building Wrap is strong and durable, suitable for all areas of New Zealand including up to ‘Extra High’ wind zones of NZS 3604
  • Barricade FR Building Wrap is suitable for use with all cladding systems
  • Barricade FR Building Wrap performs over timber or steel framing.
  • Barricade FR Building Wrap is suitable to be used as a non rigid backing for stucco plaster
  • Barricade FR Building Wrap is suitable as an air barrier on walls that are not lined
  • Barricade FR Building Wrap has unique anti fungal properties

Scope Of Use / Applications

Barricade FR Wall Wrap has been appraised for use as a flexible wall underlay on timber framed buildings within the following scope:

  • The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
  • With absorbent and non-absorbent wall claddings directly fixed to the frame; and,
  • With absorbent and non-absorbent wall claddings installed over an 18mm minimum drained cavity; and,
  • With masonry veneer in accordance with NZBC Acceptable Solution E2/AS1; and,
  • Situated in NZS 3604 wind zones up to and including ‘Very High’

Barricade FR Wall Wrap has been appraised for use as a flexible wall underlay on steel framed buildings within the following scope:

  • The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; with regards to building height and floor plan area; and,
  • With absorbent and non-absorbent wall claddings directly fixed to the frame; and,
  • With absorbent and non-absorbent wall claddings installed over an 18mm minimum drained cavity; and,
  • With masonry veneer in accordance with NZBC Acceptable Solution E2/AS1; and,
  • Situated in NZS 3604 wind zones up to and including ‘Very High’

Barricade FR Wall Wrap has been appraised for use as a flexible wall underlay over rigid wall underlays on timber and steel framed buildings within the following scope:

  • The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
  • With absorbent and non-absorbent wall claddings installed over an 18mm minimum drained cavity; and,
  • With masonry veneer in accordance with NZBC Acceptable Solution E2/AS1; and,
  • Situated in NZS 3604 wind zones up to and including ‘Extra High’



SIZE: 2.74 x 36.5M 100M2

PRODUCT CODE: HWBFRMP2.74X100

(HWBFRMP2.74X100)

SKU HWBFRMP2.74X100
Brand Masons
