Simpson Strong Tie SDE Split Joist Hanger 60-120mm x 140-207mm Z275 Galvanised

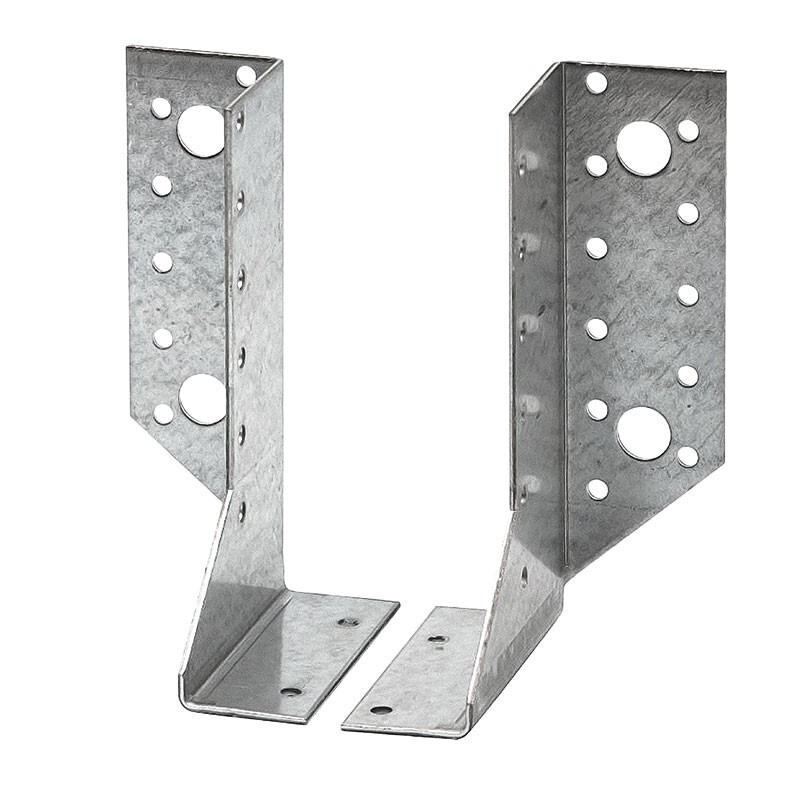

The STSDE340/30 Split Joist Hanger is a two‑piece, width‑adjustable joist hanger that can accommodate joist widths from 60mm and 120mm. Each STSDE340/30 is comprised of one left and one right piece. It is essential to install nails in the base of the joist hanger to ensure a solid sturdy assembly.



  • Manufactured in heavier gauge steel for a stronger load capacity
  • One joist hanger with adjustable width can handle multiple applications, simplifying purchasing
  • Quick and simple installation
  • The hangers have bolt holes for 10mm or 12mm fasteners into the face
  • Can be installed on solid timber header, I-Beam or concrete/masonry wall
  • Compatible with Strong-Drive® SD screws



Installation

  • Use all specified fasteners
  • Verify that the beam/header can take the fasteners specified in the table
  • Each SDE piece must also be nailed through the holes underneath the joist
  • The hangers have bolt holes for 12mm fasteners into the face
  • The timber bolted capacity to be determined according to the relevant standards. Do not exceed the load values given in the table
  • The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member
  • These hangers cannot be skewed



Specification:

Code: STSDE340/30

Brand: Simpson Strong Tie

Category: Hangers

Joist Size: 60–120mm

Dimensions: 140–207mm

Material: Carbon Steel 2mm thick

Finish: Galvanised





(STSDE34030)

SKU STSDE34030
Brand Simpson Strong Tie
